Controlling a NeoPixel LED Array with ESP32 Dev Board

Introduction

This tutorial walks you through interfacing an addressable NeoPixel LED array (WS2812B) with the Envision ESP32 development board or any other Arduino-compatible microcontroller. You’ll learn how to wire the components, install the required software libraries, and write Arduino-compatible code to create dynamic lighting effects. By the end, you’ll understand how to control individual LEDs, adjust brightness and color, and design simple animations.

Learning Objectives

• Understand the basics of NeoPixel (WS2812B) control protocols
• Install and configure the Arduino IDE for ESP32 development
• Wire an ESP32 dev board to a NeoPixel LED strip correctly
• Use the Adafruit NeoPixel library to set colors and animations
• Develop and upload sample sketches that produce static and dynamic lighting effects

Background Information

NeoPixels (manufactured by Adafruit) are RGB LEDs with built-in drivers, daisy-chainable over a single data line. They require precise timing and a 5 V supply (some strips accept 3.3 V at low brightness). Compared to parallel RGB modules, NeoPixels simplify wiring but demand careful timing—handled here by the Adafruit NeoPixel library.

Getting Started

Before diving in, ensure you have the correct software and hardware.

Required Downloads and Installations

• Arduino IDE
  Download the latest Arduino IDE from https://www.arduino.cc/en/software and install it for your OS.
• ESP32 Board Support
  1. Open File > Preferences, add
     https://raw.githubusercontent.com/espressif/arduino-esp32/gh-pages/package_esp32_index.json
     to Additional Boards Manager URLs.
  2. Go to Tools > Board > Boards Manager, search for “esp32” and install esp32 by Espressif Systems.
• Adafruit NeoPixel Library
  In the IDE, navigate to Sketch > Include Library > Manage Libraries, search for “NeoPixel” and install Adafruit NeoPixel.

Required Components

Required Tools and Equipment

• Computer with USB port
• Micro-USB or USB-C cable (depending on ESP32)
• Optional: multimeter to verify voltage

Part 01: Setting Up the Development Environment

Introduction

First, we’ll configure the Arduino IDE to compile and upload code to the ESP32.

Objective

• Add ESP32 board support to Arduino IDE
• Verify successful communication with the ESP32

Instructional

1. Preferences:
   • Open File > Preferences.
   • Paste
     https://raw.githubusercontent.com/espressif/arduino-esp32/gh-pages/package_esp32_index.json
     into Additional Boards Manager URLs.
2. Boards Manager:
   • Go to Tools > Board > Boards Manager, search esp32, and click Install.
3. Select Board & Port:
   • Tools > Board > ESP32 Dev Module.
   • Tools > Port → choose the COM port (Windows) or /dev/ttyUSBx (macOS/Linux).
4. Upload Example:
   • Open File > Examples > WiFi > WiFiScan, click Upload, then open the Serial Monitor to confirm output.

Part 02: Wiring the NeoPixel Array

Introduction

Proper wiring ensures data integrity and prevents damage to LEDs or the ESP32.

Objective

• Connect power, ground, and data lines between the ESP32 and NeoPixels.
• Add level shifting if needed for data line.

Instructional

1. Power:
   • Connect ESP32 5 V (Vin) to NeoPixel 5 V.
   • Connect all grounds together (ESP32 GND → NeoPixel GND → Power Supply GND).
2. Data:
   • Connect ESP32 GPIO pin (e.g., D5) to NeoPixel DIN.
   • If using a level shifter (e.g., 74HCT125), route the data line through the shifter input.
3. Verify:
   • Double-check connections with a multimeter before powering on.

Part 03: Writing Your First Sketch

Introduction

We’ll write a sketch that lights up each LED in solid red, then cycles through colors.

Objective

• Initialize the NeoPixel library.
• Set individual pixel colors.
• Create a simple color-cycling loop.

Video

https://github.com/user-attachments/assets/7aa7db10-c95b-401f-bfc3-a8fc18ed6d51

Instructional

#include <Adafruit_NeoPixel.h>

#define PIN        5      // Data pin
#define NUMPIXELS  8      // Number of LEDs

Adafruit_NeoPixel strip(NUMPIXELS, PIN, NEO_GRB + NEO_KHZ800);

void setup() {
  strip.begin();
  strip.show(); // Initialize all pixels to 'off'
}

void loop() {
  // Static red
  for (int i = 0; i < NUMPIXELS; i++) {
    strip.setPixelColor(i, strip.Color(255, 0, 0));
  }
  strip.show();
  delay(1000);

  // Color cycle
  for (uint16_t hue = 0; hue < 65536; hue += 256) {
    for (int i = 0; i < NUMPIXELS; i++) {
      strip.setPixelColor(i, strip.gamma32(strip.ColorHSV(hue)));
    }
    strip.show();
    delay(20);
  }
}

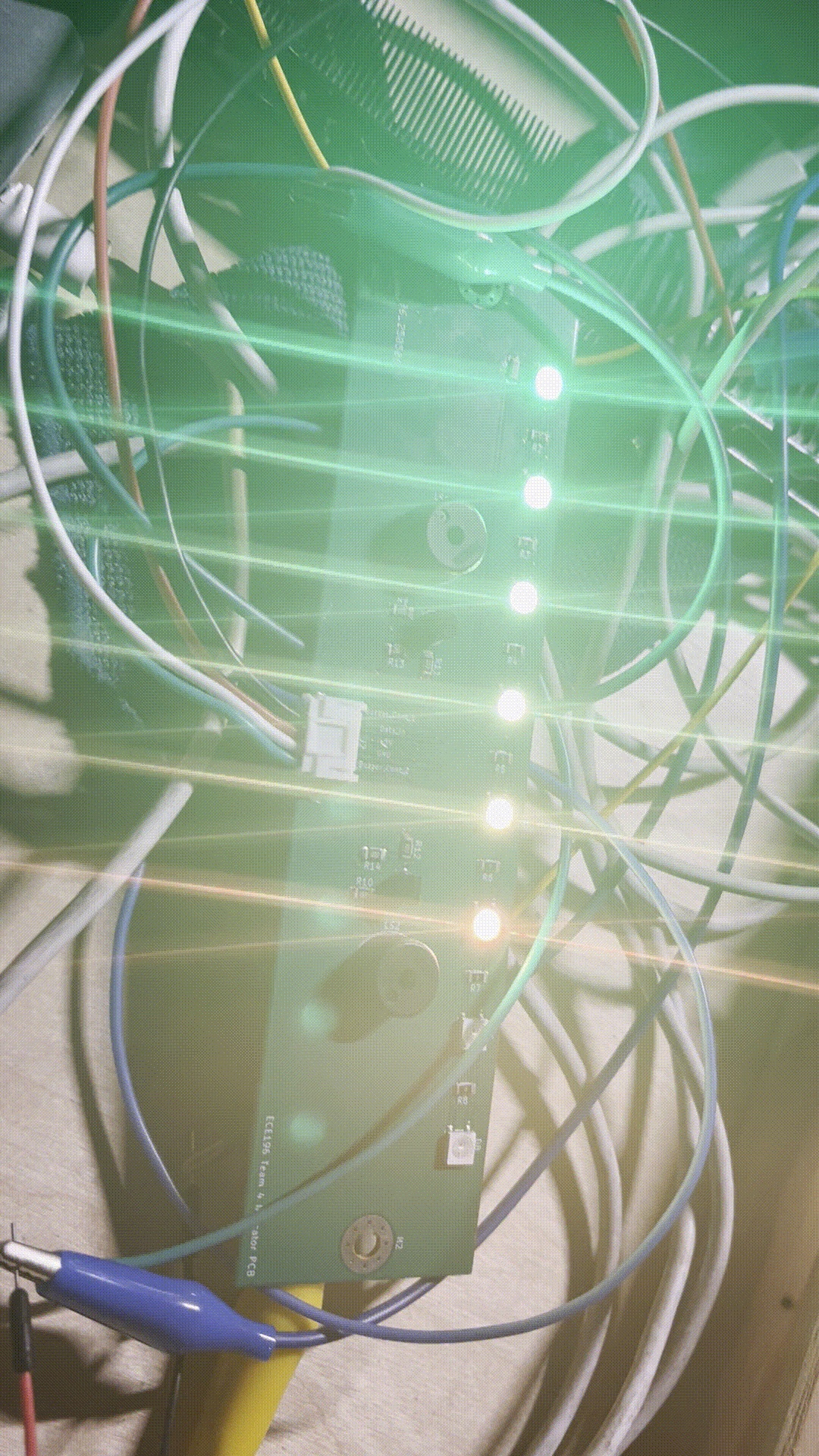

Example: Progress Meter with Color Gradient

Introduction

This example turns the NeoPixel strip into a horizontal progress meter. As the progress value increases, LEDs light up in a smooth gradient from green (0%) through yellow (50%) to red (100%).

Video

https://github.com/user-attachments/assets/d883f0ae-f304-42a1-9c68-dc3172175f2d

Sketch

#include <Adafruit_NeoPixel.h>

#define PIN         5
#define NUMPIXELS   8  // Number of LEDs in your strip

Adafruit_NeoPixel strip(NUMPIXELS, PIN, NEO_GRB + NEO_KHZ800);

uint8_t progress = 0;  // 0–100%

// Interpolate a color between green and red for a given LED index
uint32_t getLedColor(uint8_t ledIndex) {
  float fraction = float(ledIndex) / float(NUMPIXELS - 1);  // 0.0 → 1.0
  uint8_t r = uint8_t(fraction * 255);            // ramps 0 → 255
  uint8_t g = uint8_t((1.0 - fraction) * 255);    // ramps 255 → 0
  return strip.Color(r, g, 0);
}

void setup() {
  strip.begin();
  strip.show();  // all LEDs off
}

void loop() {
  //wait at the end of progress bar
  if(progress==100){
    delay(1000);
  }
  // Simulate progress increase
  progress = (progress + 1) % 101;  // wraps 0 → 100

  // Determine how many LEDs to light
  uint8_t ledsToLight = map(progress, 0, 100, 0, NUMPIXELS);

  // Update each LED
  for (uint8_t i = 0; i < NUMPIXELS; i++) {
    if (i < ledsToLight) {
      strip.setPixelColor(i, getLedColor(i));
    } else {
      strip.setPixelColor(i, 0);  // off
    }
  }
  strip.show();

  // Adjust this delay for faster or slower progress sweep
  delay(100);
}
