Controlling an OLED I2C Display

Introduction
Getting Started
Connecting and Basic Operation
Making a Game
What Next?
Full Game Code

Introduction

This tutorial will go over how to interact with a small OLED display using the popular U8g2 library. After getting the display up and running, we will create a simple game that will be controlled with keyboard input (over serial).

Objectives

Learn the basics of PlatformIO to setup the development environment
Write to a display using the U8g2_Arduino library
Use serial input (from keyboard) to play a game on the display
Learn a little about simple game programming methods
Discover alternative libraries that you could use in the future!

Getting Started

This tutorial assumes some knowledge of C++ programming and working with microcontroller boards (uploading code, etc.).

Software

If you don’t yet have Visual Studio Code, you can install it here.

Once you’ve installed VSCode, you can install PlatformIO following these instructions.

You may be thinking, “Why do I need PlatformIO?” PlatformIO has many advantages over the Arduino IDE including much faster compilation times and all of the perks that come with a fully featured IDE like VSCode.

Hardware

For this tutorial, you will need:

ESP32-S3-mini DevBoard (ECE196 DevBoard) + USB-C cable
4 jumper wires (male/female depending if you are going to use a breadboard)
(Optionally) A breadboard (to make it easier to wire and view the display)
This display or one like it (SSD1306 driver, 128x32, I2C)

Note: this tutorial can be followed/adapted to the many displays supported by the U8g2 library, but we will use the display above.

Connecting and Basic Operation

In this section, we will wire the display to the DevBoard and display simple graphics to ensure that it is functioning properly.

Wiring the Display

We are going to communicate with the display using the Inter-Integrated Circuit Protocol, abbreviated as I2C (or I²C or I “squared” C). I2C allows multiple peripherals (displays, sensors, etc.) to communicate with a “controller” on the same bus as long as they have unique addresses. Personally, I enjoy using I2C because it only requires two wires, one for serial data (SDA) and one for serial clock (SCL). This, coupled with the fact that you can “chain” peripherals together, keeps the wiring easy and clean.

To wire our display to the DevBoard, connect:

SDA (display) to GPIO 8 (DevBoard)
SCL to GPIO 9
VCC to 3.3
GND to GND

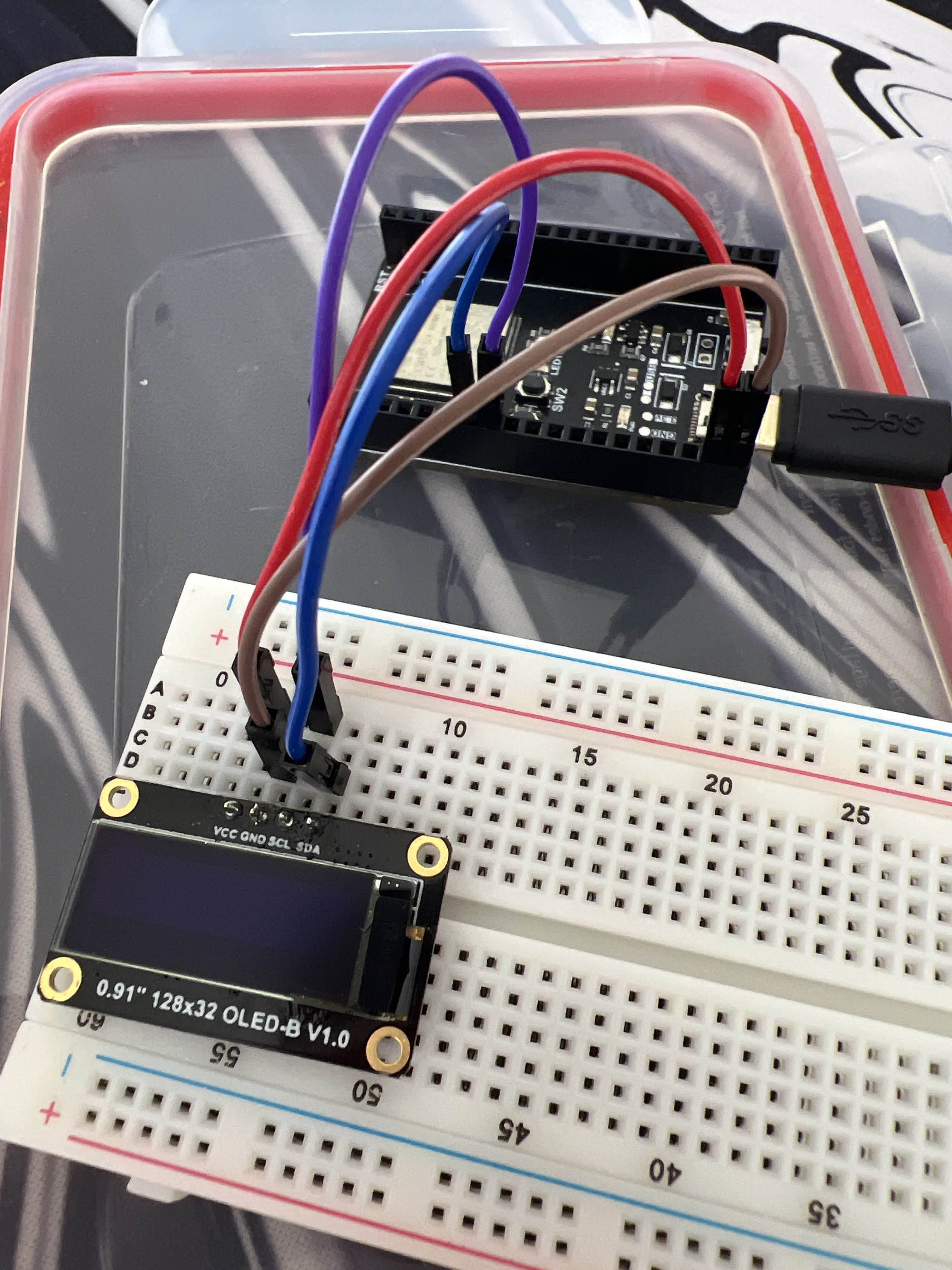

Here is how it should look: alt text

Note: The ESP32-S3 has a GPIO matrix that allows you to route most peripherals to any available GPIO pin; for the purpose of this tutorial we will use the above assignments.

Creating PlatformIO Project

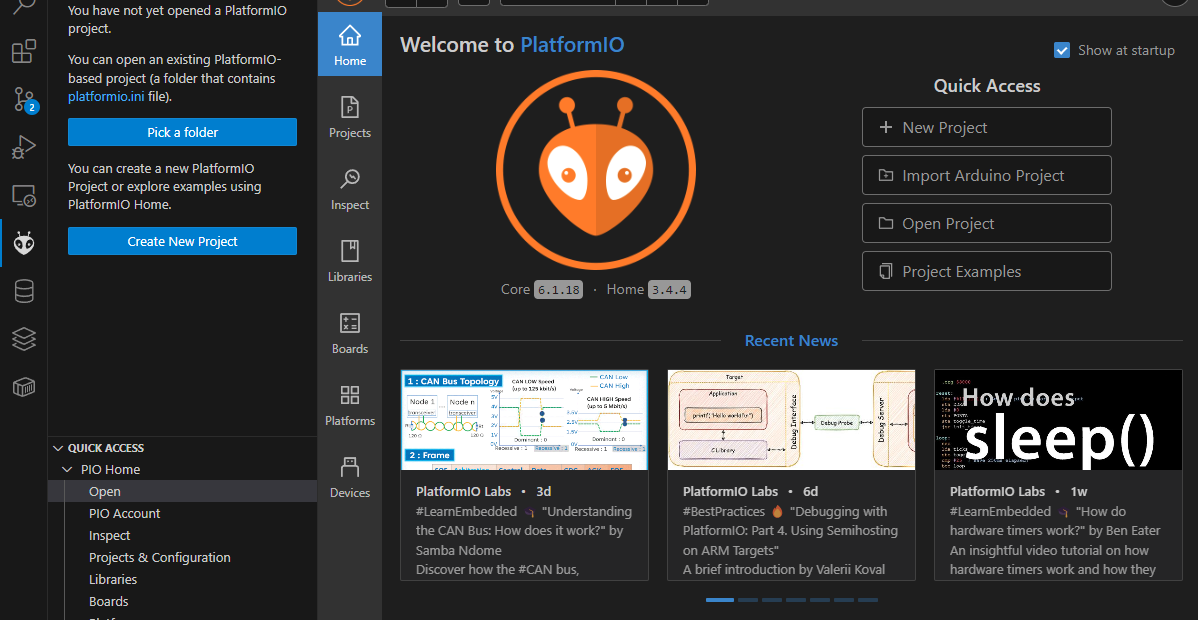

Click on the PlatformIO extension in the VSCode sidebar and open the PIO Home menu from quick access as shown below: home

Once you’ve made it there, create a new project by clicking “New Project”. For the board, select the Espressif ESP32-S3-DevKitC-1-N8 (8 MB QD, No PSRAM). For the framework, ensure Arduino is selected. The project name and location are up to you.

Once we’ve created the project, we need to edit the contents of the platformio.ini file. This is the main configuration file for PlatformIO projects. Crucially, add the lines lib_deps = olikraus/U8g2 @ ^2.36.5 to install the U8g2 library. Additionally, we will change a few other settings to ensure everything works as intended. Below is the entire platformio.ini file:

; platformio.ini

[env:esp32-s3-devkitc-1]
platform = espressif32@6.10.0
board = esp32-s3-devkitc-1
framework = arduino
upload_speed = 921600
monitor_speed = 115200
build_flags =
    -D ARDUINO_USB_CDC_ON_BOOT=1
lib_deps =
    olikraus/U8g2 @ ^2.36.5

Make sure to save the file to ensure the project is updated!

Writing to the Display

Now we get to write to the display!

We will write our code in src\main.cpp. PlatformIO uses a C++ style project structure with header (.h) and source (.cpp) files (which plenty of resources online/AI can explain).

For our first program, we will write “Hello World!” onto the display. Before we dive in, I implore you to open up the u8g2 wiki, the reference, and the setup pages.

Below is the commented code to write “Hello World!” onto the display. Some things to note are the constructor name which tells us that we are opting to use a full frame buffer (F) and hardware I2C (HW_I2C). Additionally, we pass in the rotation (default, landscape) for the display. When using a full frame buffer, we keep an entire frame of the display in the ram of the ESP32-S3 and use clearBuffer() and sendBuffer() to clear and transfer the RAM to the display.

// main.cpp

#include <Arduino.h>
#include <U8g2lib.h>

// Initialize display with SSD1306 128x32 I2C constructor, full frame buffer, and landscape orientation
U8G2_SSD1306_128X32_UNIVISION_F_HW_I2C u8g2(U8G2_R0);

void setup() {
  // Initialize the display
  u8g2.begin();
}

void loop() {
  // Clear the buffer
  u8g2.clearBuffer();

  // Write "Hello World!" to the display
  u8g2.setFont(u8g2_font_ncenB14_tr);
  u8g2.drawStr(0,15,"Hello World!");

  // Send buffer to display
  u8g2.sendBuffer();

  delay(1000);
}

After uploading this code (with the right arrow button in the bottom left), you should see “Hello World!” on the display! If you don’t, ensure that your wiring is correct.

Making a Game

We will now make a simple snake game (with score!) that is controlled with the WASD keys. In this snake game, the player wins after they eat 15 food (score reaches 15).

I’m not going to go over the entire code, but I will touch on the core game and display related logic.

Game Loop

One of the most important parts of any game is the game loop. In our code, this will manifest as the void loop() function. In any game loop, we must handle input, states, logic, and rendering.

Here, I want to emphasize the idea of states. States are a crucial part of almost any well designed embedded program and allow for easier debugging and cleaner code.

For our snake game, we have four states which we define in an enum. These states are MENU, PLAYING, GAME_OVER, and WIN, and they represent each of the core parts/screens of the game. The current state decides which logic will run in our game loop, shown below.

// Game loop

void loop() {
  handleInput();

  switch (gameState) {
    case MENU:
      drawMenu();
      break;
    case PLAYING:
      // Update game logic at controlled intervals
      if (millis() - lastMoveTime >= moveInterval) {
        updateGame();
        lastMoveTime = millis();
      }
      drawGame();
      break;
    case GAME_OVER:
    case WIN:
      // Auto-return to menu after 5 seconds
      if (millis() - gameOverStartTime >= 5000) {
        gameState = MENU;
      }
      if (gameState == GAME_OVER) {
        drawGameOver();
      } else {
        drawWin();
      }
      break;
  }

  delay(50);  // Main loop refresh rate
}

Here, we can see how the game loop handles input and then draws a screen based on the current state.

Drawing Screens

To actually display the game (display buffers from RAM), we can directly apply what we learned in the prior part of the tutorial with clearBuffer() and sendBuffer(). To draw to the display, we essentially wrap what we want to show on the display in clearBuffer() and sendBuffer(). A good example of this is shown in the drawGame() function.

// Renders the game play screen with snake, food, and score
void drawGame() {
  u8g2.clearBuffer();

  // Draw snake segments
  for (int i = 0; i < snakeLength; i++) {
    u8g2.drawBox(snake[i].x, snake[i].y, SNAKE_SIZE, SNAKE_SIZE);
  }

  // Draw food
  u8g2.drawBox(food.x, food.y, SNAKE_SIZE, SNAKE_SIZE);

  // Draw score in right panel
  u8g2.setFont(u8g2_font_5x7_tr);
  char scoreStr[6];
  sprintf(scoreStr, "%d/%d", score, WINNING_SCORE);
  int scoreWidth = u8g2.getStrWidth(scoreStr);
  int scoreX = PLAY_AREA_WIDTH + (SCORE_AREA_WIDTH - scoreWidth) / 2;
  u8g2.drawStr(scoreX, 8, scoreStr);

  u8g2.sendBuffer();
}

Each call to drawGame() draws the snake, food, and score. Importantly, notice that the actual snake movement, collision detection, and game logic is not implemented within the drawGame() function. Instead, this logic is implemented within the updateGame() function (shown in the full code below). This makes the code much more readable and separates the display related code from the game logic related code.

Now that you know the basics of states, the game loop, and drawing frames, it’s time to upload the code and play snake for yourself! Here is a link to the full game code (located at bottom of the page) that you can paste into main.cpp. Remember that the controls are w-a-s-d to move. To play the game, open the serial monitor (click the plug in the bottom left) and type into it.

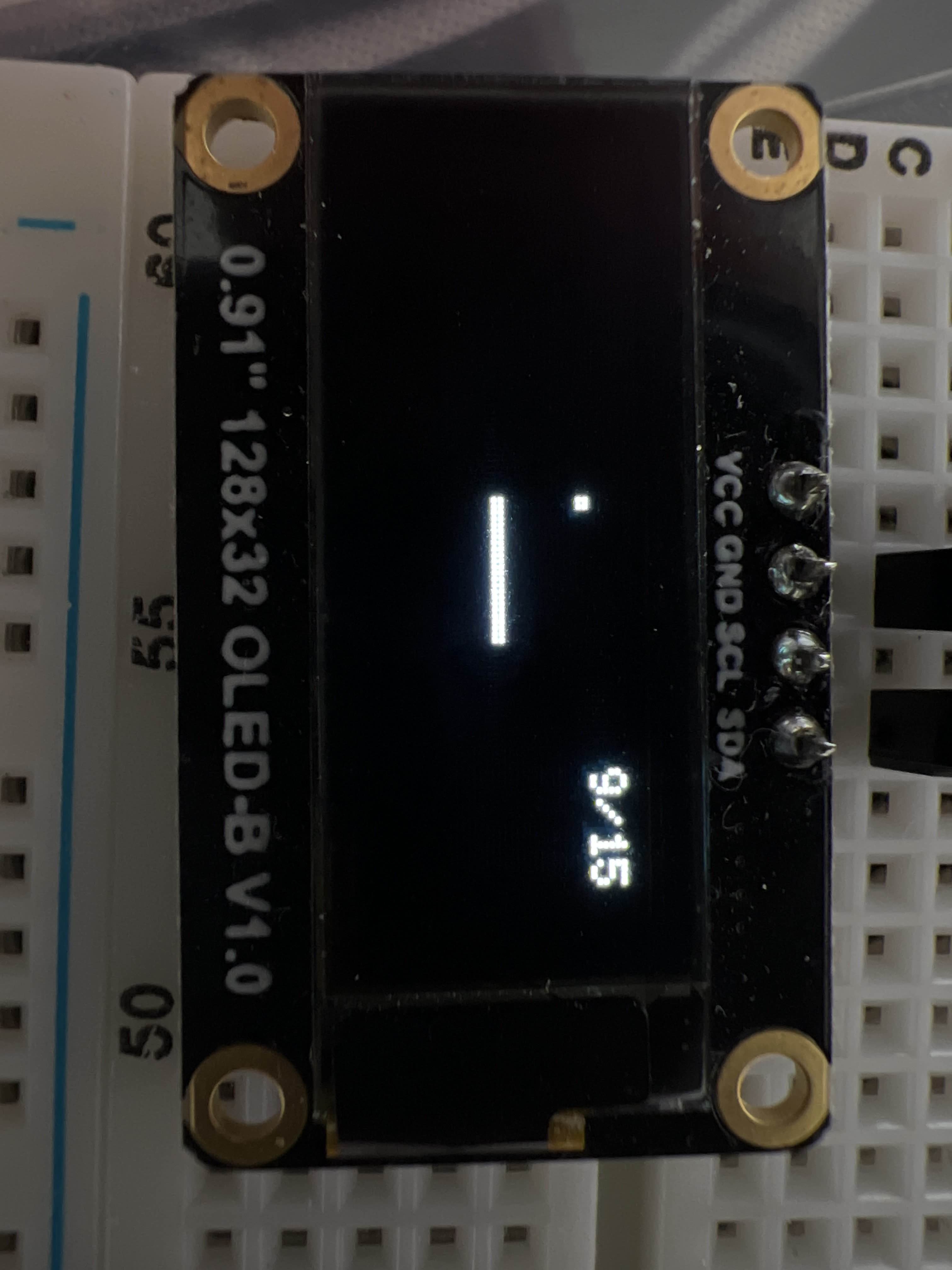

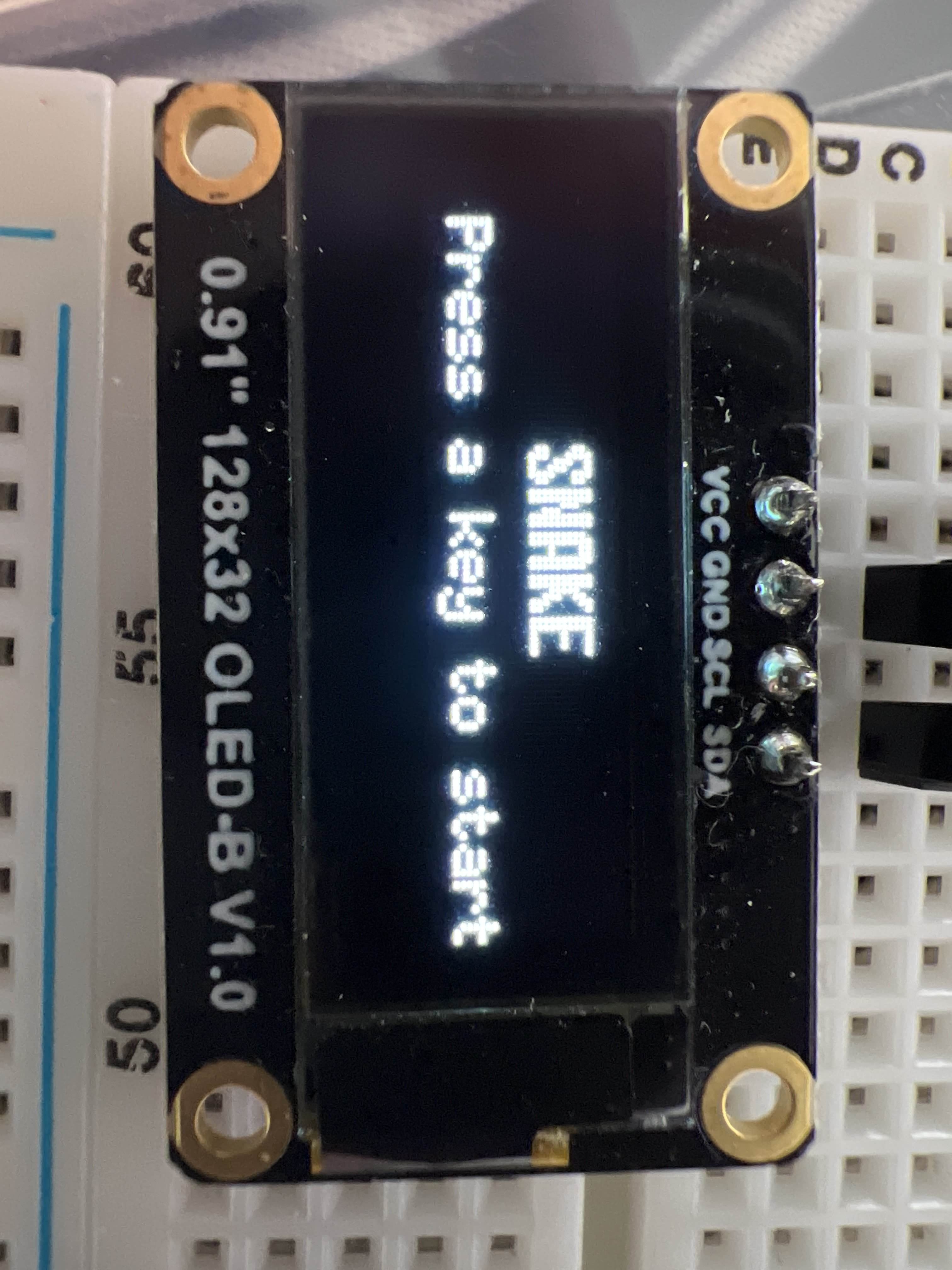

Here are some pictures of the game on the display: title playing

What Next?

Snake is pretty cool, but there is much more you can do with graphics libraries and the ESP32-S3. In this tutorial, we used the U8g2 library which offers a wide variety of fonts and granular frame buffer control (note: we have enough RAM to just use full mode), but there are many other options. One such option is the LovyanGFX library which has more functionality for games (e.g. sprites). With libraries like this and a powerful MCU, the possibilities are endless.

And looking beyond I2C, libraries like TFT_eSPI can be used in combination with LVGL to create useful widgets and other more advanced display utilities.

Full Game Code

Disclaimer: AI was used to assist with the below code. Everything else in the tutorial was written completely by me.

// main.cpp

#include <Arduino.h>
#include <U8g2lib.h>

// Display initialization for SSD1306 128x32 OLED
U8G2_SSD1306_128X32_UNIVISION_F_HW_I2C u8g2(U8G2_R0);

// Display and game constants
#define DISPLAY_WIDTH 128
#define DISPLAY_HEIGHT 32
#define SNAKE_SIZE 2
#define MAX_SNAKE_LENGTH 50
#define WINNING_SCORE 15
#define SCORE_AREA_WIDTH 30  // Right side reserved for score display
#define PLAY_AREA_WIDTH (DISPLAY_WIDTH - SCORE_AREA_WIDTH)

// Game state management
enum GameState { MENU, PLAYING, GAME_OVER, WIN };
enum Direction { UP, DOWN, LEFT, RIGHT };

// Game state variables
GameState gameState = MENU;
int score = 0;
unsigned long gameOverStartTime = 0;
unsigned long lastMoveTime = 0;
const unsigned long moveInterval = 120;  // Snake speed in milliseconds

// Snake data structure and variables
struct Point { int x, y; };
Point snake[MAX_SNAKE_LENGTH];
int snakeLength = 3;
Direction currentDirection = RIGHT;
Direction nextDirection = RIGHT;  // Buffered input to prevent reverse direction
Point food;

// Function declarations
void initializeGame();
void generateFood();
void handleInput();
void updateGame();
void drawMenu();
void drawGame();
void drawGameOver();
void drawWin();

void setup() {
  Serial.begin(115200);
  u8g2.begin();
  randomSeed(analogRead(A1));  // Seed random generator for food placement
  initializeGame();
}

void loop() {
  handleInput();

  switch (gameState) {
    case MENU:
      drawMenu();
      break;
    case PLAYING:
      // Update game logic at controlled intervals
      if (millis() - lastMoveTime >= moveInterval) {
        updateGame();
        lastMoveTime = millis();
      }
      drawGame();
      break;
    case GAME_OVER:
    case WIN:
      // Auto-return to menu after 5 seconds
      if (millis() - gameOverStartTime >= 5000) {
        gameState = MENU;
      }
      if (gameState == GAME_OVER) {
        drawGameOver();
      } else {
        drawWin();
      }
      break;
  }

  delay(50);  // Main loop refresh rate
}

// Resets game variables and snake position to starting state
void initializeGame() {
  // Reset game state
  score = 0;
  snakeLength = 3;
  currentDirection = RIGHT;
  nextDirection = RIGHT;

  // Initialize snake starting position (horizontal line)
  for (int i = 0; i < snakeLength; i++) {
    snake[i].x = 10 - i * SNAKE_SIZE;
    snake[i].y = 16;
  }

  generateFood();
}

// Places food at a random position that doesn't conflict with snake body
void generateFood() {
  do {
    food.x = random(0, PLAY_AREA_WIDTH / SNAKE_SIZE) * SNAKE_SIZE;
    food.y = random(0, DISPLAY_HEIGHT / SNAKE_SIZE) * SNAKE_SIZE;
  } while ([&]() {
    // Check if food would spawn on snake
    for (int i = 0; i < snakeLength; i++) {
      if (snake[i].x == food.x && snake[i].y == food.y) return true;
    }
    return false;
  }());
}

// Processes serial input for game controls and state changes
void handleInput() {
  if (Serial.available() > 0) {
    char input = Serial.read();

    // Any key starts game from menu
    if (gameState == MENU) {
      gameState = PLAYING;
      initializeGame();
      return;
    }

    // WASD controls during gameplay
    if (gameState == PLAYING) {
      switch (input) {
        case 'w': case 'W':
          if (currentDirection != DOWN) nextDirection = UP;
          break;
        case 's': case 'S':
          if (currentDirection != UP) nextDirection = DOWN;
          break;
        case 'a': case 'A':
          if (currentDirection != RIGHT) nextDirection = LEFT;
          break;
        case 'd': case 'D':
          if (currentDirection != LEFT) nextDirection = RIGHT;
          break;
      }
    }
  }
}

// Updates snake movement, collision detection, and game logic
void updateGame() {
  currentDirection = nextDirection;

  // Move snake body segments forward
  for (int i = snakeLength - 1; i > 0; i--) {
    snake[i] = snake[i - 1];
  }

  // Move head based on current direction
  switch (currentDirection) {
    case UP:    snake[0].y -= SNAKE_SIZE; break;
    case DOWN:  snake[0].y += SNAKE_SIZE; break;
    case LEFT:  snake[0].x -= SNAKE_SIZE; break;
    case RIGHT: snake[0].x += SNAKE_SIZE; break;
  }

  // Handle screen wrapping (horizontal)
  if (snake[0].x < 0) snake[0].x = PLAY_AREA_WIDTH - SNAKE_SIZE;
  else if (snake[0].x >= PLAY_AREA_WIDTH) snake[0].x = 0;

  // Handle screen wrapping (vertical)
  if (snake[0].y < 0) snake[0].y = DISPLAY_HEIGHT - SNAKE_SIZE;
  else if (snake[0].y >= DISPLAY_HEIGHT) snake[0].y = 0;

  // Check for self-collision
  for (int i = 1; i < snakeLength; i++) {
    if (snake[0].x == snake[i].x && snake[0].y == snake[i].y) {
      gameState = GAME_OVER;
      gameOverStartTime = millis();
      return;
    }
  }

  // Check food collision
  if (snake[0].x == food.x && snake[0].y == food.y) {
    score++;
    // Check win condition
    if (score >= WINNING_SCORE) {
      gameState = WIN;
      gameOverStartTime = millis();
      return;
    }

    // Grow snake by duplicating tail segment
    if (snakeLength < MAX_SNAKE_LENGTH) {
      snake[snakeLength] = snake[snakeLength - 1];
      snakeLength++;
    }
    generateFood();
  }
}

// Renders the main menu screen with title and instructions
void drawMenu() {
  u8g2.clearBuffer();
  // Draw title
  u8g2.setFont(u8g2_font_7x14B_tr);
  int titleWidth = u8g2.getStrWidth("SNAKE");
  u8g2.drawStr((DISPLAY_WIDTH - titleWidth) / 2, 15, "SNAKE");

  // Draw instructions
  u8g2.setFont(u8g2_font_6x10_tr);
  int subtitleWidth = u8g2.getStrWidth("Press key to start");
  u8g2.drawStr((DISPLAY_WIDTH - subtitleWidth) / 2, 28, "Press a key to start");
  u8g2.sendBuffer();
}

// Renders the game play screen with snake, food, and score
void drawGame() {
  u8g2.clearBuffer();

  // Draw snake segments
  for (int i = 0; i < snakeLength; i++) {
    u8g2.drawBox(snake[i].x, snake[i].y, SNAKE_SIZE, SNAKE_SIZE);
  }

  // Draw food
  u8g2.drawBox(food.x, food.y, SNAKE_SIZE, SNAKE_SIZE);

  // Draw score in right panel
  u8g2.setFont(u8g2_font_5x7_tr);
  char scoreStr[6];
  sprintf(scoreStr, "%d/%d", score, WINNING_SCORE);
  int scoreWidth = u8g2.getStrWidth(scoreStr);
  int scoreX = PLAY_AREA_WIDTH + (SCORE_AREA_WIDTH - scoreWidth) / 2;
  u8g2.drawStr(scoreX, 8, scoreStr);

  u8g2.sendBuffer();
}

// Renders the game over screen with death message and final score
void drawGameOver() {
  u8g2.clearBuffer();
  // Draw game over message
  u8g2.setFont(u8g2_font_7x14B_tr);
  int titleWidth = u8g2.getStrWidth("You Died!");
  u8g2.drawStr((DISPLAY_WIDTH - titleWidth) / 2, 15, "You Died!");

  // Show final score
  u8g2.setFont(u8g2_font_6x10_tr);
  char scoreText[20];
  sprintf(scoreText, "Score: %d", score);
  int scoreWidth = u8g2.getStrWidth(scoreText);
  u8g2.drawStr((DISPLAY_WIDTH - scoreWidth) / 2, 28, scoreText);
  u8g2.sendBuffer();
}

// Renders the victory screen when player reaches winning score
void drawWin() {
  u8g2.clearBuffer();
  // Draw victory message
  u8g2.setFont(u8g2_font_7x14B_tr);
  int titleWidth = u8g2.getStrWidth("You Win!");
  u8g2.drawStr((DISPLAY_WIDTH - titleWidth) / 2, 15, "You Win!");

  // Draw congratulations
  u8g2.setFont(u8g2_font_6x10_tr);
  int subtitleWidth = u8g2.getStrWidth("Great job!");
  u8g2.drawStr((DISPLAY_WIDTH - subtitleWidth) / 2, 28, "Great job!");
  u8g2.sendBuffer();
}

ESP32 WiFi Scanner Calculating Distance using ESP32
