Leaderboard and Flash ESP32 LED after Successful Upload

June 6, 2025·

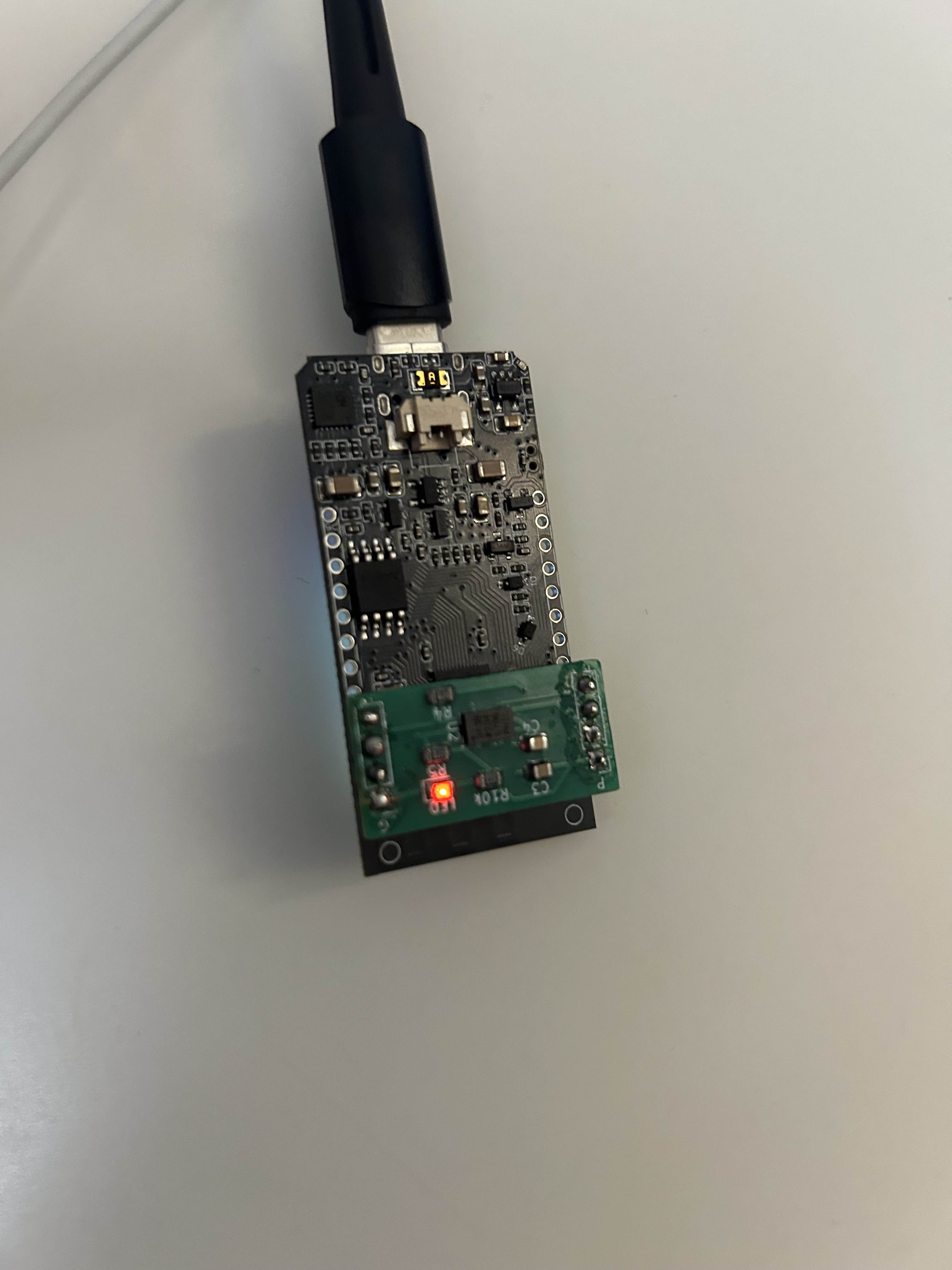

LED flashing

Introduction

This tutorial will teach you how to build a live leaderboard and get your ESP32’s led to flash once you’ve updated it! By the end of this tutorial you will:

Build a simple web page that displays people’s standings in real - time.
Program an ESP32 to flash an on-board LED each time the POST succeeds.

Learning Objectives

Web development(dealing with result requests)
ESP32, how to update leaderboard
Toggle LED flash when leaderboard is updated

Background Information

This leaderboard can keep track of the scores of you and your friends.

A leaderboard is essentially a key/value database (user → points) exposed via a REST interface.
We’ll implement two endpoints:

Action	HTTP Verb	Path	Body / Params	Purpose
Read	`GET`	`/scores`	–	Return full standings
Write	`POST`	`/scores`	`{ "user": "...", "pts": n }`	Add or update a user score

Getting Started

Three pieces are required:

Computer to host the API and front-end capable of running python and Arduino IDE
ESP32 with an LED either on-board or external
Network this tutorial was tested with mobile hotspot

Required Downloads and Installations

Tool / Library	Purpose	Install Guide
Python ≥ 3.10	Run FastAPI server	https://python.org
FastAPI & Uvicorn	REST framework / ASGI host	`pip install fastapi uvicorn`
Arduino IDE (or VS Code + PlatformIO)	Flash ESP32	https://arduino.cc/en/software

Required Components

Component Name	Quantity
ESP32 DevKit (S2/S3/C3)	1
USB cable (data-capable)	1
Breadboard LED (optional)	1
220 Ω resistor (if external LED)	1
Jumper wires	2–3

Part 01: Back-End (FastAPI)

Introduction

I wanted to make a simple leaderboard tutorial because it is quite easy to make and can give your project a really user-friendly and competitive aspect.

Objective

Create two enpoints (/scores GET & POST)
Serve the future front-end(HTML/JS) from the same app

Background Information

FastAPI is a Python web framework
Uvicorn is the Asynchronous Server Gateway Interface(ASGI) that listens on the port.
Data will live in a simple Python dictionary (scores = {}) so you can stay laser-focused on the HTTP flow.

Components

Python >= 3.10
pip install fastapi uvicorn
VS Code

Instructional

Teach the contents of this section Create a folder mkdir leaderboard cd leaderboard Make a main.py and paste this code :

from fastapi import FastAPI, HTTPException
from fastapi.staticfiles import StaticFiles
from pydantic import BaseModel
import uvicorn

app = FastAPI(title="Live Leaderboard")
scores = {}                    # in-memory {user: pts}

class Entry(BaseModel):
    user: str
    pts:  int

@app.get("/scores")
def all_scores():
    return sorted(scores.items(), key=lambda kv: kv[1], reverse=True)

@app.post("/scores", status_code=201)
def add_score(e: Entry):
    if not e.user:
        raise HTTPException(400, "User cannot be empty")
    scores[e.user] = e.pts
    return {"ok": True}

# serve future index.html
app.mount("/", StaticFiles(directory=".", html=True), name="static")

if __name__ == "__main__":
    uvicorn.run(app, host="0.0.0.0", port=8000)

You can then run the server

python main.py

Terminal should show: Uvicorn running on http://127.0.0.1:8000

Part 02: Front-End (HTML + JavaScript)

Introduction

With the back-end running, you need a quick way to see those scores update.
In this section you’ll build a single-file front-end (index.html) that:

Fetches /scores every couple of seconds.
Re-renders a table with the latest standings.

No frameworks—just plain HTML, a dash of CSS, and the browser’s native fetch().

Objectives

Load a static file from FastAPI’s StaticFiles mount.
Use fetch() to call a JSON endpoint.
Dynamically update the DOM without reloading the page.

Background Information

Modern browsers support Fetch API—a promise-based replacement for XMLHttpRequest.
A simple setInterval() loop is enough for “live-ish” updates (every 2 s in this tutorial).
The table will always render top-to-bottom, highest score first, because the back-end already sorts the list.

Components

Item	Purpose
`index.html` (new file)	front-end UI
Browser (Chrome, Edge…)	runs the page
(No extra hardware)

Tip: Keep index.html in the same folder as main.py so FastAPI can serve it automatically.

Instructional

Create index.html in the same leaderboard/ directory.
Paste the 20-line starter below:

<!doctype html>
<meta charset="utf-8">
<title>Live Leaderboard</title>
<style>
body{font-family:system-ui,sans-serif;max-width:24rem;margin:auto}
h2{text-align:center}
table{width:100%;border-collapse:collapse}
th,td{padding:.4rem .6rem;border-bottom:1px solid #ccc;text-align:left}
</style>

<h2>🏆 Leaderboard</h2>

<table id="board">
  <thead><tr><th>User<th>Points</tr></thead>
  <tbody></tbody>
</table>

<script>
const tbody = document.querySelector('#board tbody');

async function refresh(){
  try{
    const res  = await fetch('/scores');
    const data = await res.json();          // [[user, pts], …]
    tbody.innerHTML = data
      .map(([u,p]) => `<tr><td>${u}<td>${p}`)
      .join('');
  }catch(err){ console.error('Fetch failed', err); }
}

refresh();                // run once on load
setInterval(refresh,2000); // repeat every 2 s
</script>

Reload http://localhost:8000/ in your browser.

You should see an empty table.

Part 03: ESP32 Client (Wi-Fi JSON & LED Flash)

Introduction

Your web stack is live—now let’s feed it with real hardware data.
In this section you’ll program an ESP32 to:

Connect to your Wi-Fi network.
POST its latest score to /scores.
Blink the on-board LED once as a quick “upload succeeded” confirmation.

Objectives

Configure HTTPClient for a simple JSON POST.
Build a tiny helper that blinks a GPIO for ~120 ms.
See the browser table update automatically after each upload.

Background Information

HTTPClient (bundled with Arduino-ESP32) is perfect for one-off REST calls.
A blocking delay(120) blink is fine, because the sketch is already waiting for the HTTP response.
If your board’s LED isn’t on GPIO 2, just change the LED_PIN constant or wire an external LED + 220 Ω to any spare pin.

Components

Part	Qty	Notes
ESP32 dev-kit	1	S2 / S3 / C3—all work
USB data cable	1	Flashing & Serial Monitor
(Optional) LED + 220 Ω	1	Only if your board has no built-in LED

Instructional

Open Arduino IDE → File → New Sketch.
Paste the snippet below and edit three items:
- WIFI_SSID
- WIFI_PASS
- <PC_IP> (your computer’s LAN IP, e.g. 192.168.4.12)

#include <WiFi.h>
#include <HTTPClient.h>

/* Wi-Fi credentials ------------------------------------------------ */
const char* WIFI_SSID = "YOUR_WIFI";
const char* WIFI_PASS = "YOUR_PASS";

/* FastAPI endpoint ------------------------------------------------- */
const char* SERVER_URL = "http://<PC_IP>:8000/scores";   // ← change IP

/* LED pin ---------------------------------------------------------- */
const uint8_t LED_PIN = 2;   // built-in LED on most dev-kits

/* Helper: connect Wi-Fi ------------------------------------------- */
void wifi_connect() {
  WiFi.begin(WIFI_SSID, WIFI_PASS);
  while (WiFi.status() != WL_CONNECTED) delay(250);
}

/* Helper: 120 ms blink -------------------------------------------- */
inline void flashLED(uint16_t ms = 120) {
  digitalWrite(LED_PIN, HIGH);
  delay(ms);
  digitalWrite(LED_PIN, LOW);
}

/* Helper: send JSON score ----------------------------------------- */
void sendScore(const String& user, uint32_t pts) {
  if (WiFi.status() != WL_CONNECTED) wifi_connect();

  HTTPClient http;
  http.begin(SERVER_URL);
  http.addHeader("Content-Type", "application/json");

  String body = "{\"user\":\"" + user + "\",\"pts\":" + pts + "}";
  int code = http.POST(body);

  if (code > 0) flashLED();   // blink on success
  http.end();
}

/* Arduino entry points -------------------------------------------- */
void setup() {
  Serial.begin(115200);
  pinMode(LED_PIN, OUTPUT);
  wifi_connect();
}

void loop() {
  static uint32_t total = 0;
  total += random(15, 45);     // fake “points” for demo
  sendScore("name", total);
  delay(5000);                 // push every 5 s
}

Analysis

This end-to-end demo proves the whole pipeline works: every time the ESP32 HTTP-POSTs a score, the LED flashes, FastAPI stores the value, and the browser’s fetch() call.

Useful links

https://fastapi.tiangolo.com/ https://www.uvicorn.org/ https://github.com/espressif/arduino-esp32/tree/master/libraries/HTTPClient List any sources you used, documentation, helpful examples, similar projects etc.
